Description:Timing belt is made up of aged endless belt relevant. Exact transmission, stable, small noise, constant velocity rate which can be gained. Our company produce the timing belt have resistant oil, heat aging.
Property of synchronous belt
|
Test item |
Pitch type |
|
Tension test |
Tension strength¡Ýkn25.4mm |
MXL |
XL |
L |
H |
XH |
XXH |
|
0.59 |
1.96 |
2.65 |
6.77 |
9.32 |
10.80 |
|
Elongation¡Ü% |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
4.0 |
|
|
Note: The elongation is under loaded-up condition¡¯s elongation
Loading capacity
|
Pitch type |
MXL |
XL |
L |
H |
XH |
XXH |
|
KN/25.4mm loading |
0.49 |
1.57 |
2.16 |
5.39 |
7.46 |
8.64 |
Standard synchronous belt width
|
Type |
|
MXL |
XL |
L |
H |
XH |
|
Belt width |
Code |
012 |
019 |
025 |
025 |
031 |
037 |
050 |
075 |
100 |
075 |
100 |
150 |
200 |
200 |
300 |
400 |
|
|
|
Belt |
3.0 |
4.8 |
6.4 |
6.4 |
7.9 |
9.5 |
12.7 |
79.1 |
25.4 |
19.1 |
25.4 |
38.1 |
50.8 |
50.8 |
76.2 |
101.6 |
|
|
|
Type |
|
XXH |
T2.5 |
T5 AT5 |
T10 AT10 |
T20 AT20 |
|
Belt width |
Code |
200 |
012 |
400 |
500 |
4 |
6 |
10 |
6 |
10 |
16 |
25 |
16 |
25 |
32 |
50 |
32 |
50 |
75 |
100 |
|
|
|
|
|
|
|
Belt |
50.8 |
76.2 |
101.6 |
127.0 |
4 |
6 |
10 |
6 |
10 |
16 |
25 |
16 |
25 |
32 |
50 |
32 |
50 |
75 |
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Type |
|
3M S3M |
5M S4.5M S5M |
8M S8M |
14M S14M |
20M |
|
Belt width |
Code |
6 |
9 |
15 |
9 |
15 |
25 |
30 |
30 |
40 |
50 |
85 |
55 |
85 |
115 |
170 |
70 |
85 |
115 |
170 |
230 |
290 |
340 |
|
|
|
Belt |
6 |
9 |
15 |
9 |
15 |
25 |
30 |
30 |
40 |
50 |
85 |
55 |
85 |
114 |
170 |
70 |
85 |
115 |
170 |
230 |
290 |
340 |
|
|
1. All specifications and types of timing belt can be produced
2. For particular specification belt, we can make according to the client¡¯s supplying drawing
3. timing belts¡¯ width can be adjusted as clients¡¯ request
T Type Industrial Rubber Timing Belt
|
Type |
Pitch
Pb(mm) |
Tooth height
ht(mm) |
Belt thickness
hs(mm) |
Angle ¦Â¡ã |
|
MXL |
2.032 |
0.51 |
1.14 |
40 |
|
XL |
5.080 |
1.27 |
2.30 |
50 |
|
L |
9.525 |
1.91 |
3.60 |
40 |
|
H |
12.70 |
2.29 |
4.30 |
40 |
|
XH |
22.225 |
6.35 |
11.20 |
40 |
|
XXH |
31.750 |
9.53 |
15.70 |
40 |
|
T2.5 |
2.5 |
0.7 |
1.30 |
40 |
|
T5 |
5 |
1.20 |
2.20 |
40 |
|
T10 |
10 |
2.50 |
4.50 |
40 |
|
T20 |
20 |
5.00 |
8.00 |
40 |
|
AT5 |
5 |
1.20 |
2.70 |
50 |
|
AT10 |
10 |
2.50 |
5.00 |
50 |
|
AT20 |
20 |
5.00 |
8.00 |
50 |
More information on size on request

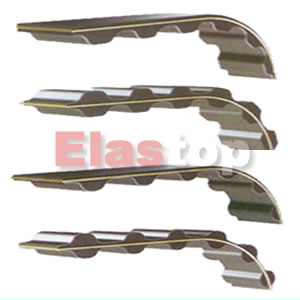

Arc Teeth Industrial Rubber Timing Belt
|
Gear code |
Type |
Pitch
Pb(mm) |
Tooth height
Ht(mm) |
Belt thickness
hs(mm) |
|
HTD
Arc Tooth |
2M |
2 |
0.75 |
1.36 |
|
3M |
3 |
1.17 |
2.4 |
|
5M |
5 |
2.06 |
3.8 |
|
8M |
8 |
3.36 |
6.00 |
|
14M |
14 |
6.02 |
10.00 |
|
20M |
20 |
8.4 |
13.20 |
|
STPD/STS
Arc Tooth |
S2M |
2 |
0.76 |
1.36 |
|
S3M |
3 |
1.14 |
1.9 |
|
S4.5M |
4.5 |
1.71 |
2.81 |
|
S5M |
5 |
1.91 |
3.4 |
|
S8M |
8 |
3.05 |
5.3 |
|
S14M |
14 |
5.3 |
10.2 |
|
RPP/HPPD
Arc Tooth |
2M |
2 |
0.76 |
1.36 |
|
3M |
3 |
1.15 |
1.9 |
|
5M |
5 |
1.95 |
3.5 |
|
8M |
8 |
3.2 |
5.5 |
|
14M |
14 |
6.00 |
10 |
More information on size on request
Double Sided Timing Belt
1.The pitch & tooth type of double sided timing belt is same as that of single sided timing belt.
2.There are two kinds of double sided timing belt£º
DA£ºArrangement symmetrical (a) DB£ºArrangement overlapping (b)
Note£ºWe can produce symmetrical (DA) and overlapping two kinds double sided timing belt. For particular specification, we can also make according to clients' drawing and sample.
|
|
|
Total Height of Double Sided Timing Belt
|
Type |
W |
T |
|
D-MXL |
0.508 |
1.53 |
|
D-XL |
0.508 |
3.05 |
|
D-L |
0.762 |
4.58 |
|
D-H |
1.372 |
5.95 |
|
D-XH |
2.794 |
15.49 |
|
D-XXH |
3.048 |
22.11 |
|
D-T2.5 |
0.60 |
2.00 |
|
D-T5 |
1.00 |
3.40 |
|
D-T10 |
2.00 |
7.00 |
|
D-T20 |
3.00 |
13.00 |
|
D-AT10 |
2.00 |
7.00 |
|
HTD.DA-3M |
0.760 |
3.10 |
|
HTD.DA-5M |
1.143 |
5.26 |
|
HTD.DA-8M |
1.372 |
8.17 |
|
HTD.DA-14M |
2.80 |
14.84 |
|
HTD.DA-S8M |
1.372 |
7.48 |
Dimension of Double Sided Timing Belt
|
Size |
Pitch Length (mm) |
Teeth No. |
|
196XL-1970XL |
497.84~5003.8 |
98~985 |
|
203L~1988L |
514.35~5048.25 |
54~530 |
|
670H~2500H |
1701.8~6350 |
124~500 |
|
700XH~2275XH |
1778.00~5778.5 |
80~260 |
|
700XXH~2625XXH |
1778.00~6667.5 |
56~210 |
|
T2.5x500~T2.5x5000 |
500.00~5000.00 |
200~2000 |
|
T5x500~T5x7000 |
500.00~7000.00 |
100~1400 |
|
T10x500~T10x7050 |
500.00~7050.00 |
50~705 |
|
T20x1700~T20x7000 |
1700.00~7000.00 |
85~350 |
|
AT10x500~AT10x7000 |
500.00~7000.00 |
50~700 |
|
501-3M~5010-3M |
501.00~5010.00 |
167~1670 |
|
500-5M~7000-5M |
500.00~7000.00 |
50~1400 |
|
512-8M~6880-8M |
512~6880 |
64~860 |
|
1750-14M~6860-14M |
1750~6860 |
125~490 |
|
S8M-512~S8M-6880 |
512~6880 |
64~860 |
|
|
